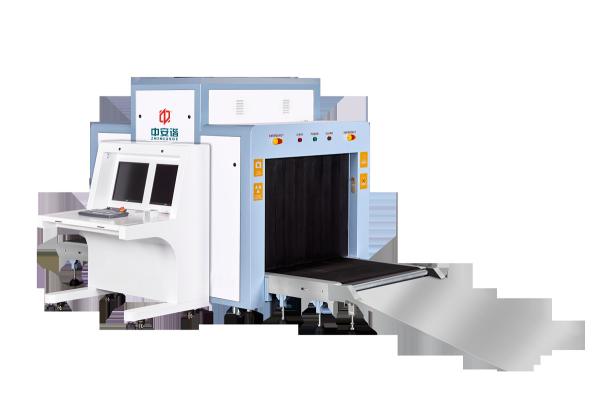

Conveyor Belt Security X Ray Baggage Scanner Baggage Intuitive Operator Interface

X-ray Generator

Ray Beam direction

Top-illuminated

Tube current

0.4~1.25mA(adjustable)

Tube voltage

100~160 kV(adjustable)

Ray beam divergence angle

90°

The cooling / work cycle

Sealed oil cooling / 100％

Image Processing System

X-ray sensor

L-shaped photodiode array detector (Multi-energy), 12bit depth

Monitor

high resolution 17 inch LCD monitor

Color image display

24-bit true color display

Console

full package sealed display, connecting cables can be adjusted according

Edge Enhancement

the outline of objects will be more clear

Super Image Enhancement

the details of the image are more clear

High penetration display

improve image contrast in bright areas, so the easy penetrating area will be
more clear

Low penetration display

improve image contrast in dark areas, so the difficult penetrating area will be
more clear

Magnifier

local amplification function

Brighten / darken

Increase/ decrease image brightness

Image pull back / front pull

Show the top 20 images, and the current image can be any image
processing

Image Restoration

Restored to its original state

Image Storage

Save any image in real time, and can store more than 100,000 images and
be processed arbitrarily, continuous work to save.

Film safety

ISO1600 film safety

Multi-energy function

Multi-energy color

orange--organic displays, blue--inorganic displays, green--the mixture

High-energy / low-energy

switching display two energy , high-energy display metals,
low-energy displays non-metallic

Drugs explosives Auxiliary

Auxiliary detect drugs ,explosives and other dangerous items

Sound and light alarm

sound and light alarm signal is issued when conditions are satisfied

Environment

Operating temperature / humidity

0℃～45℃／20%～95% (non-condensing)

Storage temperature / humidity

-20℃～60℃／20%～95% (non-condensing)

Voltage

90V~250V 50/60Hz

Power consumption

1.0KW(max)

Noise level

< 55dB (A)

Technical standards

Technical parameters

By size

800(W)×650(H)mm

Conveyor speed

0.22m/s

Load

200 kg

Resolution

∮0.1 mm

Penetration

≥40 mm steel plate

Through resolution

0.202mm

Spatial resolution

Horizontal diameter ≤1.0mm,Vertical diameter ≤1.0mm

Conveyor height from the ground

620mm

Monitor

BenQ 17in LCD Monitor

Storage

500G hard drive to save any image in real time, can store more than
100,000 and can make any image processing, and continuous work to
save.

Noise

< 55dB(A)

Operating system

windowsXP

Single check dose

One-time inspection of the X-ray light source irradiation amount
≤ 1.5µGy

Leaking radiation dose rate

Away from any device outer surface of 5cm, the ray irradiation leak rate
should
be < 0.05µGy/H
